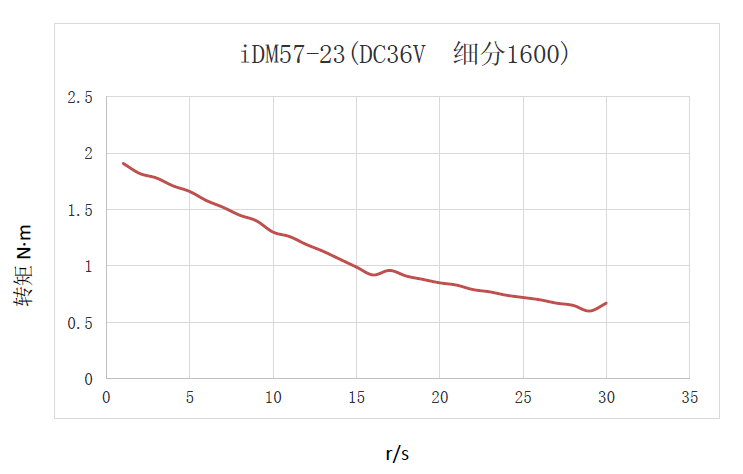

■ 電氣指標
|
參數 |
iDM57-23 |
|||
|
最小值 |
典型值 |
最大值 |
單位 |
|
|
峰值電流 |
0.3 |
- |
7.0 |
A |
|
連續輸出電流 |
0.3 |
- |
5.0 |
A |
|
電源電壓 |
20 |
24 |
40 |
VDC |
|
邏輯輸入電流 |
7 |
10 |
16 |
mA |
|
邏輯輸入電壓 |
- |
5 |
- |
VDC |
|
脈沖頻率 |
- |
- |
200 |
kHz |
■ 接口定義
● 控制端口及電源端口
|
端子號 |
符 號 |
名 稱 |
|
1 |
PUL+ |
控制脈沖輸入信號正輸入端 |
|
2 |
PUL- |
控制脈沖輸入信號負輸入端 |
|
3 |
DIR+ |
控制方向輸入信號正輸入端 |
|
4 |
DIR- |
控制方向輸入信號負輸入端 |
|
5 |
ENA+ |
使能輸入信號正輸入端 |
|
6 |
ENA- |
使能輸入信號負輸入端 |
|
7 |
ALM+ |
報警輸出正輸出端 集電極開路輸出 |
|
8 |
ALM- |
報警輸出負輸出端 |
|
9 |
GND |
電源接入地 |
|
10 |
+VDC |
電源輸入正端 |

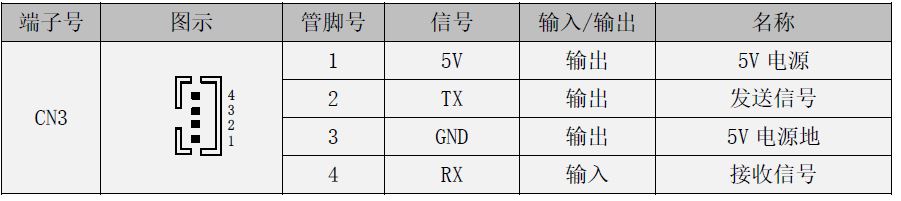

● RS232串口

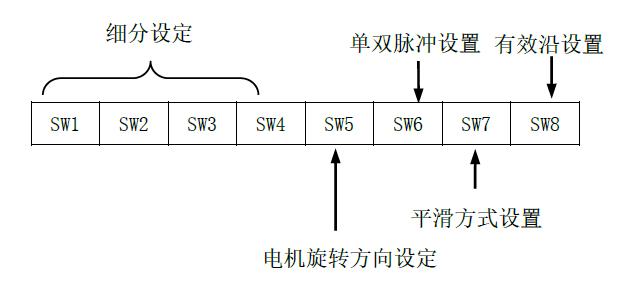

● 撥碼設定
● 細分設定
|
步數/圈 |
SW1 |
SW2 |
SW3 |
SW4 |
|
400 |
on |
on |
on |
on |
|
800 |
off |
on |
on |
on |
|
1600(出廠值) |
on |
off |
on |
on |
|
3200 |
off |
off |
on |
on |
|
6400 |
on |
on |
off |
on |
|
12800 |
off |
on |
off |
on |
|
25600 |
on |
off |
off |
on |
|
51200 |
off |
off |
off |
on |
|
1000 |
on |
on |
on |
off |
|
2000 |
off |
on |
on |
off |
|
4000 |
on |
off |
on |
off |
|
5000 |
off |
off |
on |
off |
|
8000 |
on |
on |
off |
off |
|
10000 |
off |
on |
off |
off |
|
20000 |
on |
off |
off |
off |
|
40000 |
off |
off |
off |
off |
iDM57-13尺寸
